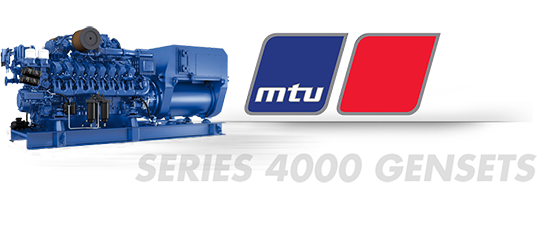

For vessels that need onboard power supply or backup power, MTU generators are a trusted name. MTU marine generators combine optimal weight, compact size and greater durability to provide better performance. Series 4000 marine generators are available from 1019 – 4043 bhp.
Lifecycle Costs
Service Network
Reliability
Technology
Product Range
Models | BHP | RPM | Displacement |
---|---|---|---|
8V 4000 M23F | 1019 | 1500 | 2331 |
8V 4000 M24S | 1200 | 1800 | 2325 |
8V 4000 M23S | 1234 | 1800 | 2331 |
12V 4000 M23F | 1529 | 1500 | 2331 |
12V 4000 M24S | 1600 | 1800 | 3490 |
12V 4000 M23S | 1851 | 1800 | 2331 |
16V 4000 M23F | 2038 | 1500 | 4656 |
16V 4000 M24S | 2260 | 1800 | 4656 |
8V 4000 M33F | 1180 | 1500 | 2331 |
8V 4000 M33S | 1395 | 1800 | 2331 |
12V 4000 M33F | 1770 | 1500 | 3491 |
12V 4000 M33S | 2092 | 1800 | 3491 |
16V 4000 M33F | 2360 | 1500 | 4656 |
16V 4000 M33S | 2789 | 1800 | 4656 |
16V 4000 M53B | 2950 | 1800 | 4210 |
16V 4000 M43S | 3004 | 1800 | 4656 |
20V 4000 M53B | 4043 | 1800 | 5263 |
